Signal levels for Enigma 2 receivers – simple, accurate, free
Free for Windows (2 MB)
Enigma Signal Meter
The Cypheros Enigma Signal Meter connects to your satellite or cable receiver via the network and displays the current signal level in real time – ideal for precisely aligning satellite antennas, checking coaxial cables, and optimizing the entire reception system.

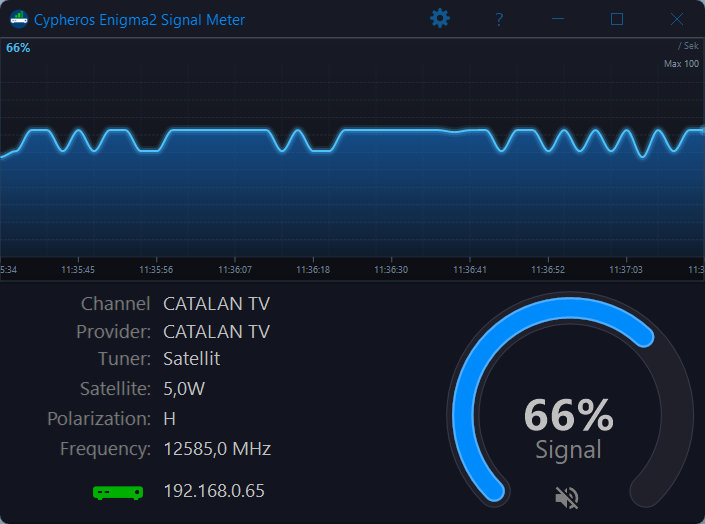

Program View
Real-time signal waveform with level indicator, transmitter data, and graphical tachometer
Features at a Glance
Real-time signal level
The graphical progress bar and speedometer display the current reception down to the second.
Sat, Cable & antenna
Supports satellite, cable, and antenna receivers running the Enigma 2 operating system.
Optimize the antenna
Perfect for aligning your satellite dish – find the best signal strength in real time.
Check the wiring
Immediately identify and resolve signal loss caused by faulty cables or F-connectors.
Station Information
Clearly displays the channel, provider, tuner, satellite, polarization, and frequency.
Network connection
Easily connect to the receiver on your home network using its IP address.
No setup required
Download, launch, done – No installation required
100% free
No restrictions, no registration required.
Align the antenna perfectly
Anyone who has ever installed or realigned a satellite dish knows how difficult it is to find the optimal reception point without tools. The Enigma Signal Meter puts an end to that: Simply connect the receiver to your home network, launch the software, and monitor the signal level in real time – while you align the antenna.
The graphical progress bar shows every small improvement immediately. This allows you to find the perfect angle quickly and reliably – without any expensive measuring devices.
Check the cabling and distribution
The signal meter is also indispensable for troubleshooting issues in an existing reception system. Switch between different channels or transponder frequencies and observe whether the signal level remains stable. Signal drops caused by faulty F-connectors, poor-quality cables, or overloaded multiswitches will thus become immediately apparent.
Technical Details
| Operating system | Windows 7 / 8 / 10 / 11 (64-bit) |
| Receiver Compatibility | All Enigma 2 receivers (satellite, cable, and antenna) |
| Connection | TCP/IP over a home network (LAN/Wi-Fi) |
| Display | Real-time trend graph + tachometer (0–100%) |
| Channel Info | Name, Provider, Tuner, Satellite, Polarization, Frequency |
| Receiver Selection | Network search or manual entry of the IP address |
| Installation | Not required – run directly |
| File size | approx. 2 MB |
| Price | Free |
Download
Signal Meter 1.0Free for Windows 7/8/10/11 (64-bit) – approx. 2 MByte Unlimited free version – no registration, no frills.
